MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55

https://citytechnology.com.au/web/image/product.template/4965/image_1920?unique=baf29d7

Product Code: CRS318-16P-2S+OUT

Barcode: 4752224002174

577.06 incl. GST 577.0600000000001 AUD 577.06

509.29


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

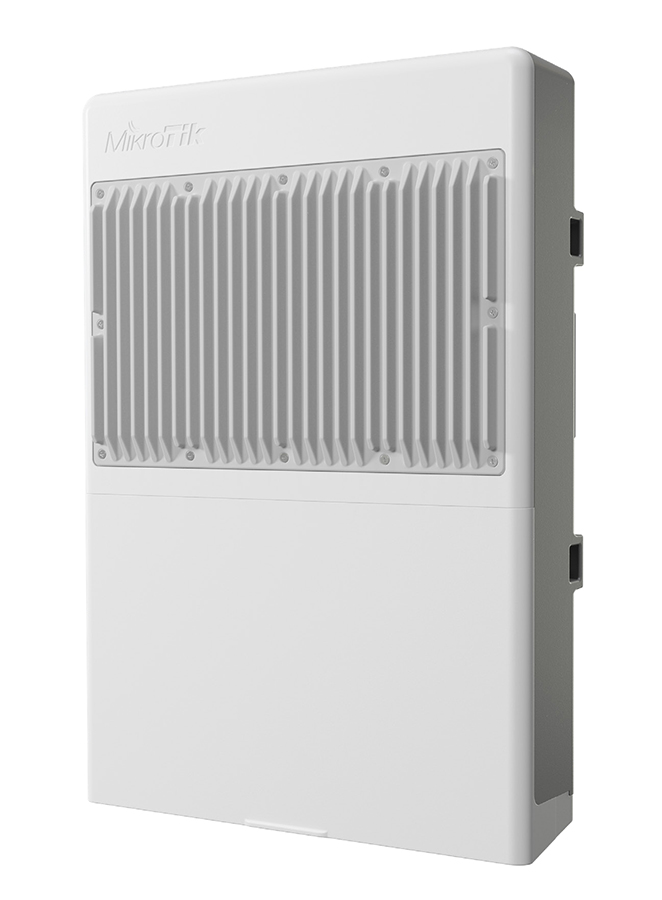

    MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55


    Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

    Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

    netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

    Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

    * Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

    Specifications:
    Product code: CRS318-16P-2S+OUT
    Architecture: ARM 32bit
    CPU: 98DX226S
    CPU core count: 1
    CPU nominal frequency: 800 MHz
    Dimensions: 303 x 212 x 78 mm
    RouterOS licence: 5
    Operating System: RouterOS / SwitchOS
    Size of RAM: 256 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -40°C to 70°C

    Powering:
    Number of DC inputs: 2 (DC jack)
    DC jack input Voltage: 18-30 V / 48-57 V
    Max power consumption: 316 W
    Max power consumption without attachments: 16 W
    Cooling type: Passive

    PoE-out:
    PoE-out ports: Ether1-Ether16
    PoE out: 802.3af/at
    Max out per port output (input 18-30 V): 1.1 A
    Max out per port output (input 30-57 V): 0.6 A
    Max total out (A): 2.8A (18V-30V) & 1.4A (48V-57V) x2 A

    Ethernet:
    10/100/1000 Ethernet ports: 16
    Number of 1G Ethernet ports with PoE-out: 16

    Fibre:
    SFP+ ports: 2

    Other:
    CPU temperature monitor: Yes
    Voltage Monitor: Yes

    Certification & Approvals:
    Certification: CE, EAC, ROHS
    IP: IP54
