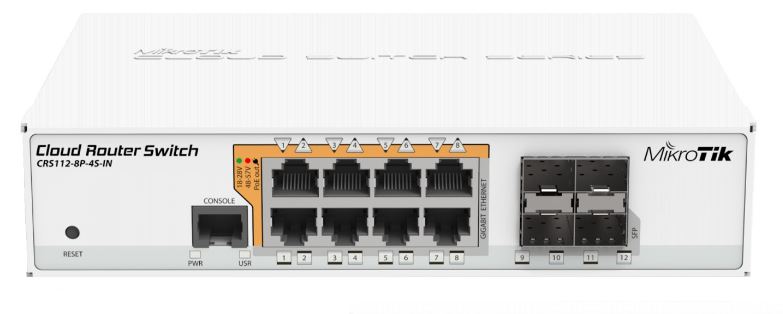

Mikrotik CRS112-8P-4S-IN Switch with POE-out RouterOS L5

Product Code: CRS112-8P-4S-IN

Barcode: 4752224002105

319.50 incl. GST 319.5 AUD 319.50

309.00


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

    Mikrotik CRS112-8P-4S-IN Switch with POE-out RouterOS L5


    CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fibre connectivity options to support uplinks of up to 1 Gbps.

    CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins



    Specifications:

    Details

    Product code

    CRS112-8P-4S-IN

    Architecture

    MIPSBE

    CPU

    QCA8511

    CPU core count

    1

    CPU nominal frequency

    400 MHz

    Dimensions

    200 x 142 x 44 mm

    License level

    5

    Size of RAM

    128 MB

    Storage size

    16 MB

    Storage type

    FLASH

    Tested ambient temperature

    -20°C to 60°C


    Powering:

    Details

    Number of DC inputs

    2 (DC jack)

    DC jack input Voltage

    18-28 V / 48-57 V

    Max power consumption

    160 W

    Max power consumption without attachments

    10 W


    PoE-out:

    Details

    PoE-out ports

    Ether1-Ether8

    PoE out

    802.3af/at

    Max out per port output (input < 30 V)

    1 A

    Max out per port output (input > 30 V)

    450 mA

    Max total out (A)

    2.8A (24V) & 1.4A (48V-57V)


    Ethernet:

    Details

    10/100/1000 Ethernet ports

    8

    Number of 1G Ethernet ports with PoE-out

    8


    Fibre:

    Details

    SFP ports

    4


    Peripherals:

    Details

    Serial port

    RJ45


    Other:

    Details

    PCB temperature monitor

    Yes


    Certification & Approvals:

    Details

    Certification

    CE/RED, EAC, ROHS
