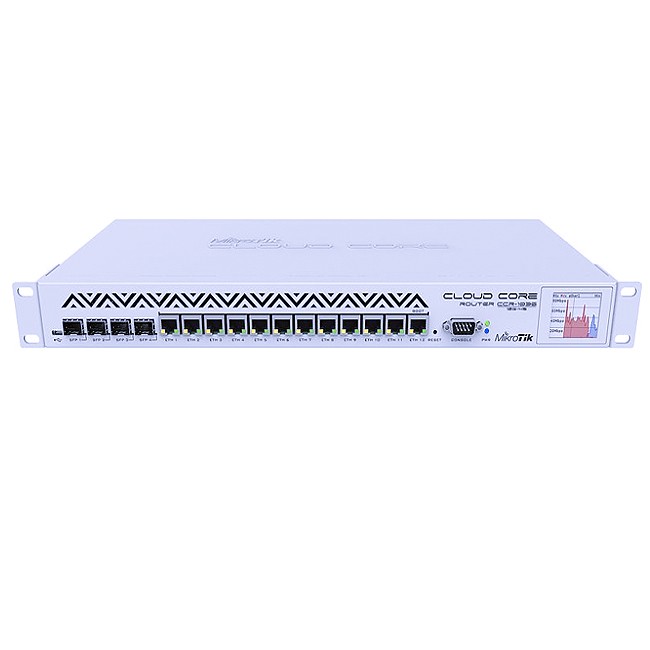

MikroTik CCR1036-12G-4S-EM Cloud Core Tilera Tile-Gx36 CPU 8GB 4xSFP 12xGbit Dual P/S

Product Code: CCR1036-12G-4S-EM

Barcode: 4752224001986

1,986.88 incl. GST 1986.88 AUD 1,986.88

1,921.56


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

    MikroTik CCR1036-12G-4S-EM Cloud Core Tilera Tile-Gx36 CPU 8GB 4xSFP 12xGbit Dual P/S


    1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 8GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSUCCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

    The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

    The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy.

    Specifications:
    Product code: CCR1036-12G-4S-EM
    Architecture: TILE
    CPU: TLR4-03680
    CPU core count: 36
    CPU nominal frequency: 1.2 GHz
    Dimensions: 443 x 193 x 44 mm
    RouterOS license: 6
    Operating System: RouterOS
    Size of RAM: 8 GB
    Storage size: 1 GB
    Storage type: NAND
    MTBF: Approximately 200'000 hours at 25C
    Tested ambient temperature: -20°C to 60°C
    IPsec hardware acceleration: Yes

    Powering:
    Number of AC inputs: 2
    AC input range: 100-240
    Max power consumption: 60 W
    FAN count: 2

    Ethernet:
    10/100/1000 Ethernet ports: 12

    Fibre:
    SFP DDMI: Yes
    SFP ports: 4

    Peripherals:
    Serial console port: RJ45
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1

    Details:
    CPU temperature monitor: Yes
    PCB temperature monitor: Yes
    Voltage Monitor: Yes
    Mode button: Yes

    Certification & Approvals:
    Certification: CE, EAC, ROHS
    IP: IP20
