Mikrotik CCR1016-12G Gx16 CPU 2GB 12xGbit LAN case L6

Product Code: CCR1016-12G

Barcode: 4752224001924

955.30 incl. GST 955.3000000000001 AUD 955.30

923.89


    This combination does not exist.

    Add to Cart

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    100% Original
    Fast Delivery


    Share this product:

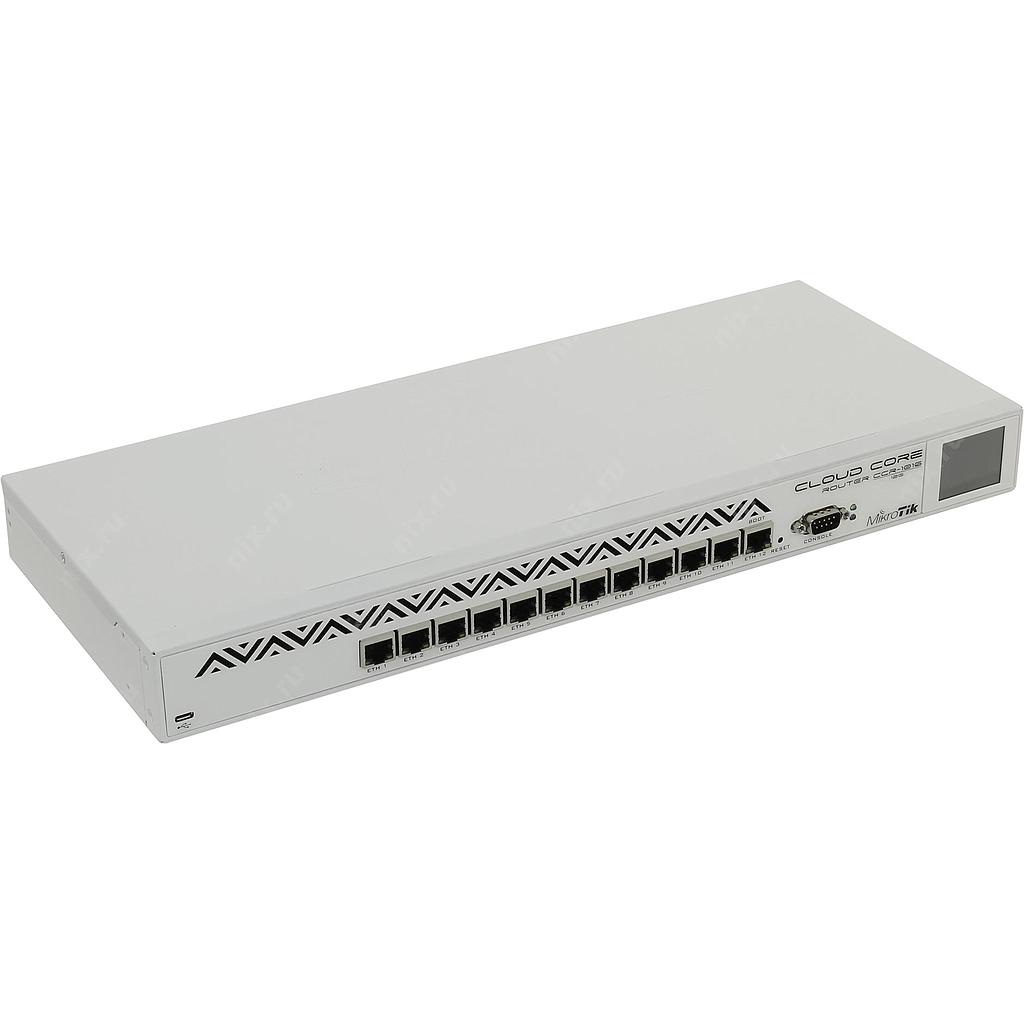

    Mikrotik CCR1016-12G 1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6


    CCR1016-12G is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

    The Mikrotik CCR1016-12G cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    The Mikrotik CCR1016-12G is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.

    Specifications:

    Product code: CCR1016-12G

    Architecture: TILE

    CPU: TLR4-01680

    CPU core count: 16

    CPU nominal frequency: 1.2 GHz

    Dimensions: 443 x 193 x 44 mm

    RouterOS license: 6

    Operating System: RouterOS

    Size of RAM: 2 GB

    Storage size: 512 MB

    Storage type: NAND

    MTBF: Approximately 200'000 hours at 25C

    Tested ambient temperature: -20°C to 60°C

    IPsec hardware acceleration: Yes

    Powering:

    Number of AC inputs: 2

    AC input range: 100-240

    Max power consumption: 42 W

    Max power consumption without attachments: 37 W

    FAN count: 2

    Ethernet

    10/100/1000 Ethernet ports: 12

    Peripherals:

    Serial console port: RJ45

    Number of USB ports: 1

    USB Power Reset: Yes

    USB slot type: USB type A

    Max USB current (A): 1

    Other:

    CPU temperature monitor: Yes

    PCB temperature monitor: Yes

    Mode button: Yes

    Certification & Approvals:

    Certification: CE, EAC, ROHS

    IP: IP20
