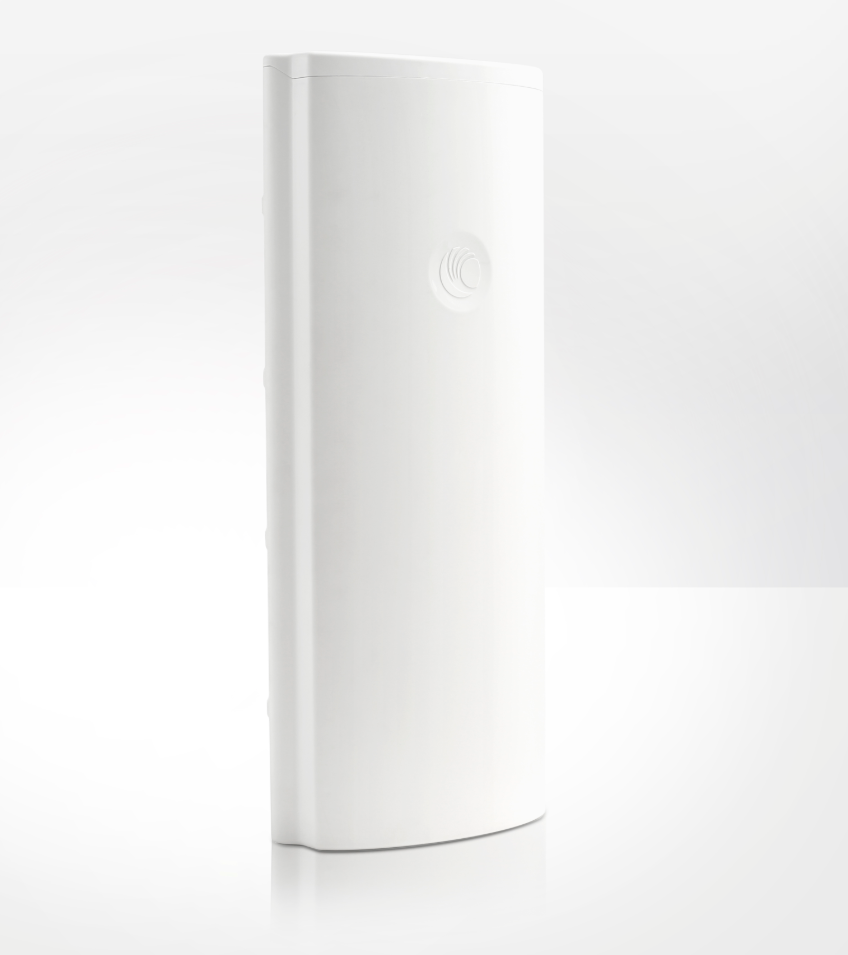

    Cambium Networks C050910D301A ePMP 4x4 MU-MIMO 17dBi Sector Antenna (for ePMP3000AP)


    Product Features:

    • 17dBi Gain

    • 4.9 to 5.97GHz Spectrum

    • 30dBi Front to Back Ratio

    • IP 65 Ruggedisation


    Product Specifications:

    • Model Number C050910D301A

    • Frequency Range 4.9 GHz to 5.97 GHz

    • Gain 17 dBi

    • 3 dB Beam-width - Azimuth 70 degrees

    • 3 dB Beam-width - Elevation 6 degrees

    • Electrical Downtilt -2 degrees

    • Polarisation 2X Horizontal, 2X Vertical

    • Model Number C050910D301A

    • Port-to-Port Isolation > 20 dB

    • Front-to-Back Ratio 30 dB

    • Maximum Input Power 5 W

    • Input Impedance 50 ohms

    • Mounting Connectors 4 x RP SMA

    • Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt

    • Hardware included to connect ePMP access point to back of antenna body

    • Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)

    • Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg

    • Environmental IP65

    • Radome Material UV Protected ABS

    • Operating Temp -400C to 600C (-400F to 1400F)


    Product Includes:

    (1) ePMP 3000 Sector Antenna

    (1) User Manual





    Click here for data sheet
