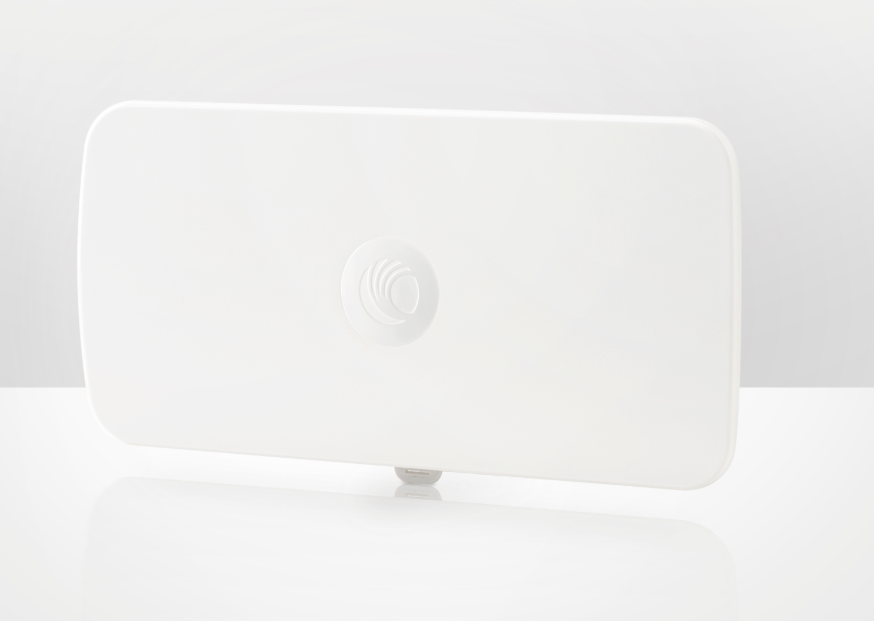

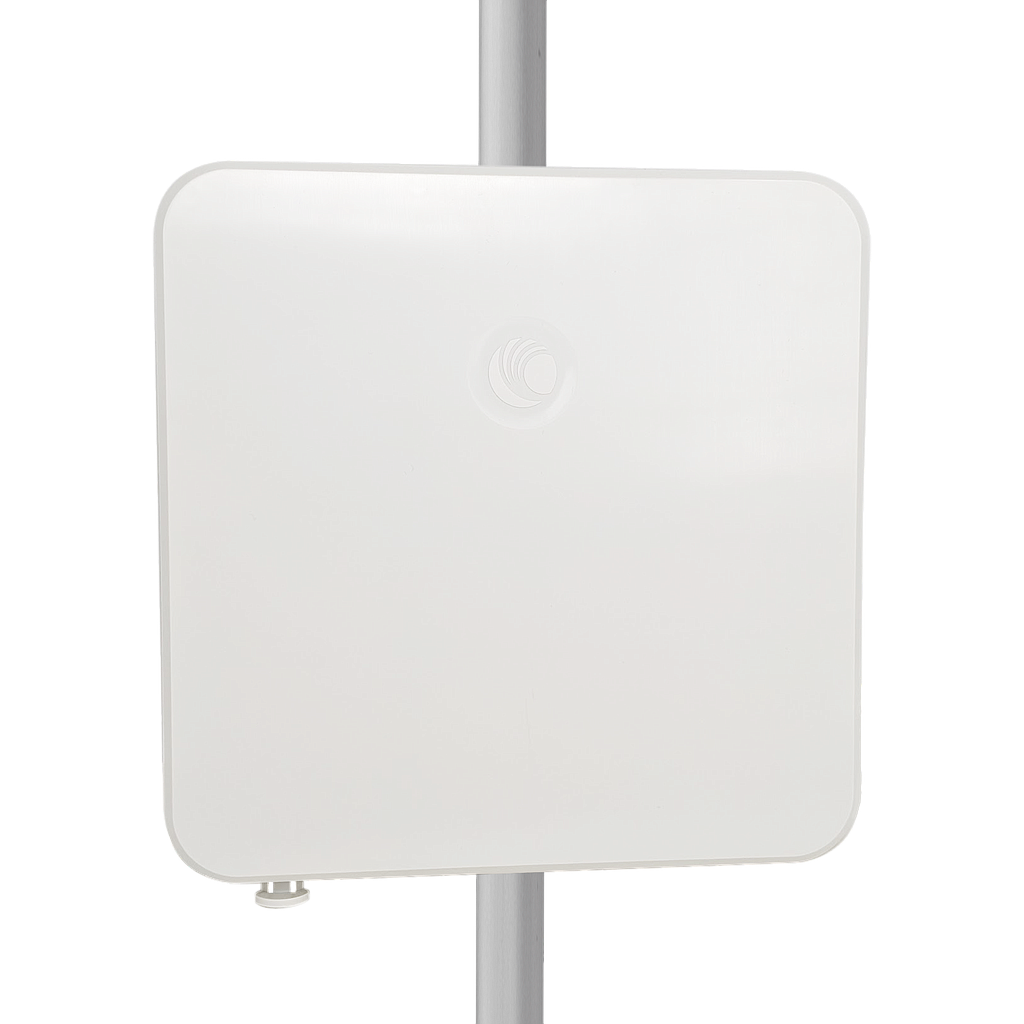

Cambium Networks C050910C801A ePMP 5 GHz Force 300-25 High Gain Radio (ROW) (ANZ cord)

Cambium ePMP 5GHz Force 300-25 High Gain Antenna (ANZ cord).

Product Code: C050910C801A

The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beam-width and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.

Features:

• Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

• The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.

• The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.

• Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.

• QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.

Details:

• Manufacturer's Code: C050910C801A

• Channel Spacing: Configurable in 5 MHz increments

• Frequency Range: Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)

• Channel Width: 20/40/80 MHz

• Antenna Gain: 25dBi

• Ethernet Interfaces: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts

• Network Management: HTTPs, SNMPv2c, SSH

• VLAN: 802.1Q with 802.1p priority

• Transmit Power Range: 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)

• Surge Suppression: 1 Joule Integrated

• Environmental: IP55

• Temperature: -22°F to +140°F (-30°C to +60°C)

• Weight: 2.4 kg (5.3 lbs)

• Wind Survival: 180 km/hour (112 mi/hour)

• Dimensions (Dia x Depth): 47 cm x 31 cm (18.5 in x 12.2 in)

• Pole Diameter Range: 64mm – 76mm (2.5 in – 3 in)

• Power Consumption: 12 Watts

• Input Voltage: 30 Volts

• Encryption: 128-bit AES (CCMP mode)
