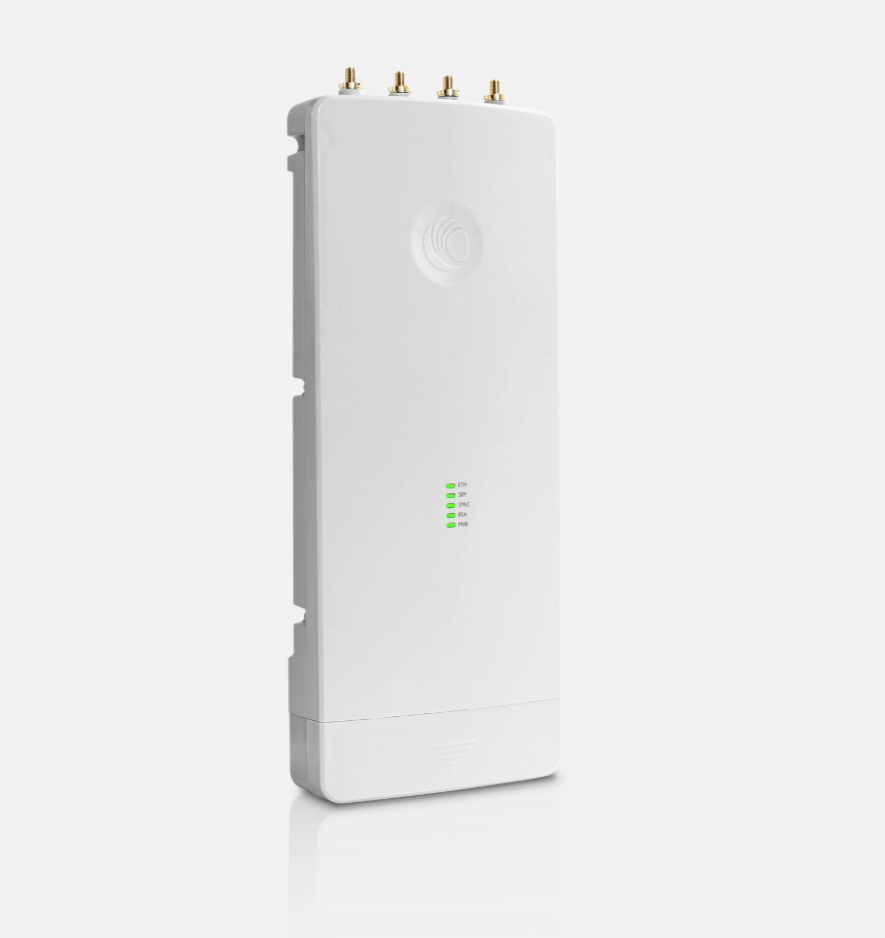

Cambium Networks C050910A801A ePMP 3000 5 GHz Access Point Radio (ROW) (ANZ cord)

Product Code: C050910A801A

1,474.33 incl. GST 1474.33 AUD 1,474.33

1,425.83


    This combination does not exist.

    Add to Cart


    100% Original
    Fast Delivery


    Share this product:

    Cambium Networks C050910A801A ePMP 3000 5 GHz Access Point Radio (ROW) (ANZ cord)


    Description:

    Cambium Networks C050910A801A Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price.

    The Cambium ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO).

    The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.

    In addition, the ePMP 3000 continues interference mitigation techniques with the support of the beam steering antenna for uplink, dynamic filtering for neighbouring channel interference, and the robust software from the ePMP product line.

    The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and 25 dBi and 16 dBi subscriber modules.

    The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.


    Features:

    • Supports GPS synchronisation and SM Transmit power control to allow for frequency re-use.
    • Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
    • Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 3000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
    • Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
    • MU-MIMO support with peak throughput of 1.2 Gbps
    • 256QAM-5/6, 80 MHz support
    • Supports a wide frequency range: 4910 – 5970 MHz
    • 802.3at compliant 100/1000BaseT interface
    • Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filteringePMP 3000 5 GHz Access Point Radio (ROW) (ANZ cord)

    Details:

    Manufacturer's Code

    C050910A801A

    Output Power

    0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)

    Channel Width

    20 / 40 / 80 MHz

    Frequency Range

    4910 – 5980 MHz

    Protocols Used

    IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

    Network Management

    HTTPs, SNMPv2c, SSH

    Interfaces

    100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port

    PoE In

    56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter

    Max Power consumption

    25W

    Number of chains

    4

    Polarisation

    4x4 MUMIMO/OFDM

    Dimensions

    22.2 x 12.4 x 4.5 cm (without brackets)

    IP Rating

    IP55

    Temperature

    -30°C to +55°C

    Subscribers per Sector

    Up to 120
