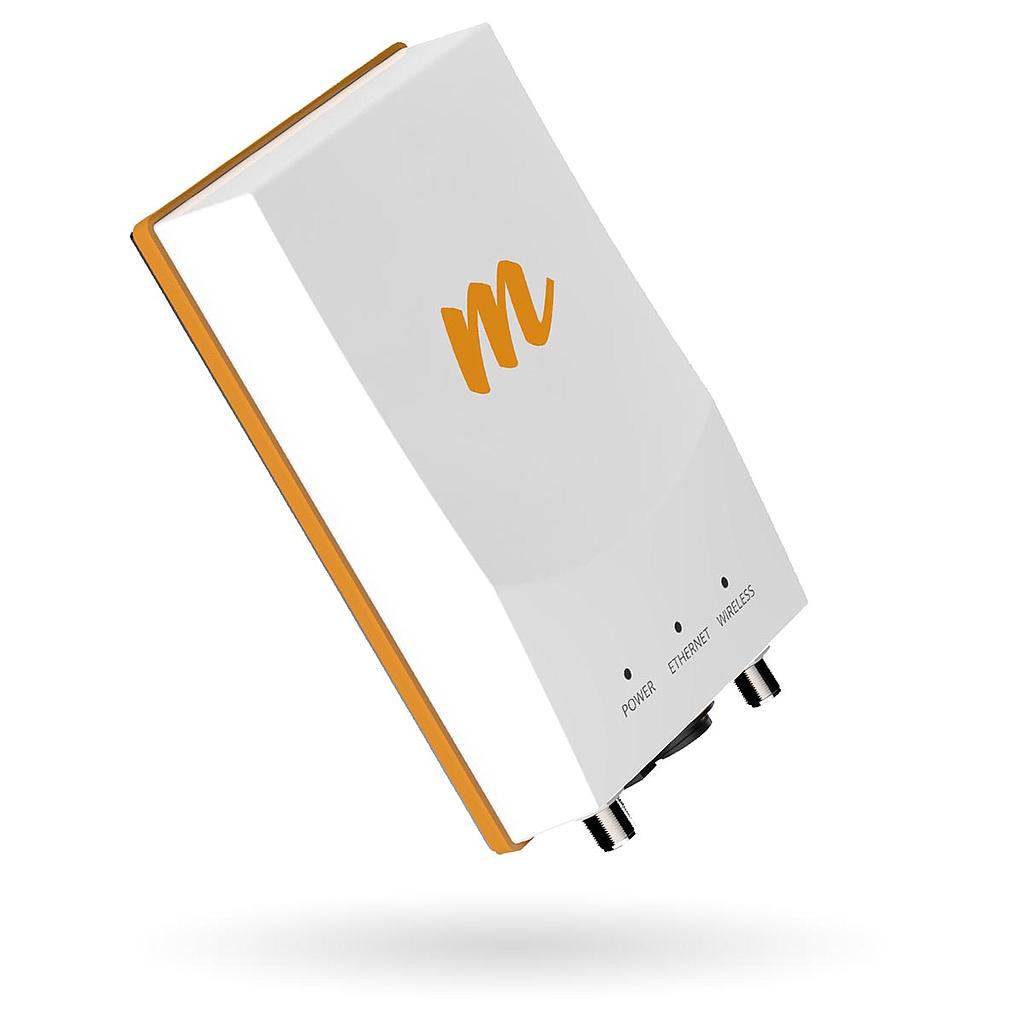

    Mimosa B5c 5GHz 1Gbps Capable PtP Backhaul



    The Mimosa B5c Backhaul is changing the game. Leveraging 802.11ac, 4x4:4 MIMO and radical engineering for service providers that demand the same capacity, speed and reliability as fibre. With 1.7 Gbps PHY and a unique spin on reliability, the B5c is re-defining gigabit wireless technology.



    The Mimosa B5c is capable of 1 Gbps throughput and a low 2 ms latency. The B5c can be paired with any dual-polarised antenna and is operational from 4900-6000 MHz*.



    The B5c brings with it an entirely new set of features never seen before in the outdoor wireless market.




    Mimosa B5c Specifications:



    Performance

    Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)

    Low Latency 2+ ms

    Wireless Protocols TDMA


    Radio

    MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM

    Bandwidth Single or Dual 20/40/80 MHz channels

    Frequency Range 4900-6000 MHz restricted by country of operation (UNII 2 US FCC certification pending)

    Max Output Power 30 dBm (2-stream), 27 dBm (4-stream)

    Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz

    -90 dBm @ 40 MHz

    -93 dBm @ 20 MHz


    Power

    Max Power

    Consumption 20W

    System Power Method 802.3at compliant

    System Lightning &

    ESD Protection 6 kV

    PoE Power Supply 56 V Power over Ethernet supply with IEC61000-4-5 surge protection


    Physical

    Dimensions Height: 267 mm (10.5") Width: 158 mm (6.2") Depth: 74 mm (3")

    Weight 1.6 kg (3.5 lbs)


    Enclosure

    Characteristics Outdoor UV stabilised plastic Aluminium mounting panel

    Mounting Dual standard pole straps for 30 mm (1.18") to 90 mm (3.54") OD pipes

    Connector Type Female Type N (x2), intended for use with dual polarisation antenna


    Environmental

    Outdoor Ingress

    Protection Rating IP67

    Operating

    Temperature -40°C to +55°C (-40°F to 131°F)

    Operating Humidity 5 to 100% condensing

    Operating Altitude 4420 m (14500') maximum

    Shock & Vibration ETS 300-019-2-4 class 4M5


    Features

    Gigabit Ethernet 10/100/1000-BASE-T

    Dual Link

    Operation 2 independent dual-stream radios operating on non-contiguous frequencies

    Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM


    Management

    Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI

    2.4 GHz 802.11b/g/n radio for local management access

    Smart Antenna

    Alignment Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool

    Smart Spectrum

    Management Active scan monitors/logs ongoing RF interference across channels (no service impact)

    Dynamic auto-optimisation of channel and bandwidth use

    Security 128-bit AES PSK with hardware

    acceleration

    QoS Supports 4 pre-configured QoS levels

    GPS Location GNSS-1 (GPS + GLONASS)


    Colocation

    Synchronisation 1PPS GPS TX/RX synchronisation for colocated co-channel radios

    Adjustable up/downstream bandwidth ratio

    Regulatory + Compliance

    Approvals FCC Part 15.407, IC RS10, CE,

    ETSI 301 893/302 502

    RoHS Compliance Yes

    Safety UL/EC/EN/ 60950-1 + CSA-22.2
