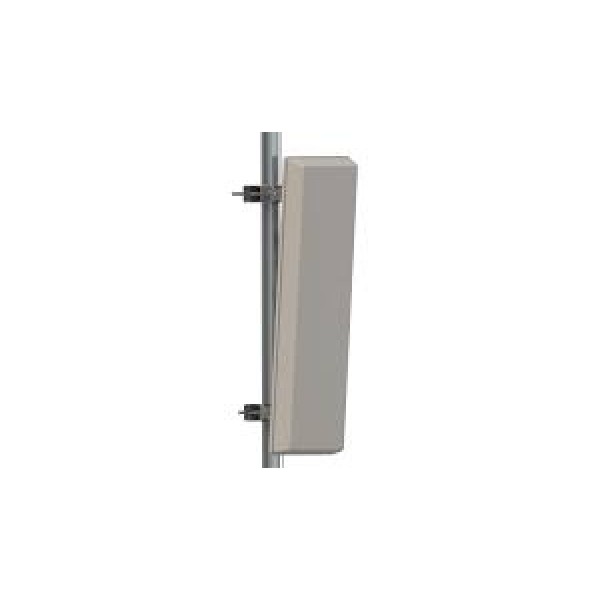

ARC Wireless ARC-VS2418SD1 2.4GHz Variable Gain Variable Beam DP
Variable Sector Antenna 2.3-2.5 GHz, 60-120° Beamwidth, 18-16 dBi 2x2 Dual Polarity MIMO variable width sector antenna
Wide range of beamwidths, 1 SKU
Mechanical slide for easy field adjustments
Ultra wideband frequency performance
High gain antenna in compact package
Low profile, rugged design for outdoor use
US Engineered
Manufactured under strict US quality control procedures
Works with WIFI, WIMAX, WCS, MMDS, MD
Electrical Specifications
Frequency Range 2.4-2.5 GHz
Mechanical Downtilt +15 deg/ -30 deg
Beamwidth 60° 90° 120°
Gain (dBi) 18 17 16
Polarization Dual Linear – Vertical and Horizontal
Vertical (EL) Beamwidth 8.0 deg
VSWR 2.3-2.5 GHz 1.5:1 Typ
Front-to-Back Ratio >25 dBi
Cross Polarization >25 dBi
Sidelobe Level >12 dBi
Port to Port Isolation >25 dBi
Power Rating 20 watts
Impedance 50 ohms
Lightning Protection DC ground
Physical/Environmental Specifications
Length x Width x Depth 70cm x 16cm x 60cm
(Excluding Bracket and Adjustment Slide)
Weight 2.3kg
Radome UV Stabilized ABS plastic, gray
Wind Survivability 200kph
Operating Temperature -45°C to 65°C
Pole Mount Diameter Range 5.0 to 7.0cm
Environmental IP 65
Connector Type-N Jack (2)
Mechanical Downtilt +15 deg/ -30 deg
