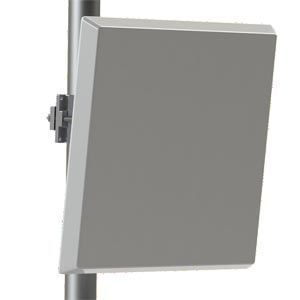

ARC Wireless ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi
100% Original
Fast Delivery
Share this product:
ARC Wireless ARC-PD5823B88 ARC Dual Polarization Panel Antenna 5.8GHz, 23dBi
ARC Wireless 4.94-5.875GHz 23dBi Dual Polarisation Panel Antenna
- Packaged with ARC ABS™ Articulating Bracket Solution
- External Radio Mounting Features Included
- High Port to Port Isolation for Ideal MIMO Performance
- US Engineered Manufactured under strict US quality control procedures
- Low profile and rugged design for outdoor use
Electrical Specifications:
- Port to Port Isolation 40dB (minimum)
- Front-to-Back Ratio >40 dBi
- Cross Polarisation >30 dBi
- Sidelobe Level >12 dB
- Power Rating 30 watts
- Impedance 50 ohms
- Lightning Protection DC Ground
Physical/Environmental Specifications:
- Length x Width x Depth 38.6 x 38.6 x 5.1cm
- Weight 1.86kg
- Backplane Aluminum
- Radome UV stabilised ABS plastic, grey
- Wind Survivability 201kph
- Wind Load 0.148m2
- Operating Temperature -45°C to 65°C
- Pole Mount Diameter Range 1.9 to 7.6cm
- Environmental IP 67
- Connector (2) Type-N Jack.
