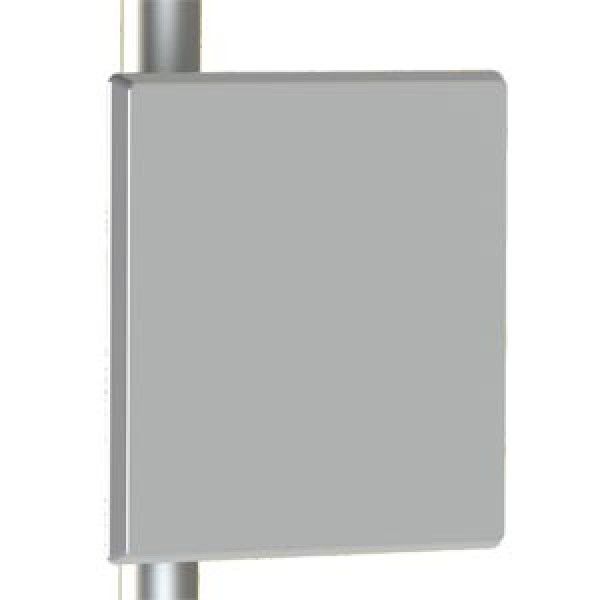

ARC Wireless ARC-PD5820C01 ARC Dual Pol Panel Ant 5.8GHz, 20dBi

Product Code: ARC-PD5820C01

165.00 incl. GST 165.0 AUD 165.00

157.82


    This combination does not exist.

    Add to Cart


    100% Original
    Fast Delivery


    Share this product:

    ARC Wireless ARC-PD5820B88 Dual Polarization Panel Ant 4.94-5.88GHz 20dBi



    ARC Wireless 5.15-5.875GHz 20dBi Dual Polarisation Panel Antenna


    Maximum gain in lowest size available

    • Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications
    • High Port to Port Isolation for Ideal MIMO Performance
    • Dual Polarisation (H & V)
    • Manufactured under strict US quality control procedures
    • Articulating wall/pole bracket (BRA-A-1699-02) included
    • Frequency Range 4.94-5.875 GHz Gain 19.5dBi (typical)
    • Polarisation Dual Linear – Vertical and Horizontal 3dB Beam-width
    • Vertical/ Horizontal 17 degrees/ 17 degrees
    • VSWR 5.15-5.875GHz ≤1.5:1 typ, ≤1.7:1 max


    Electrical Specifications

    • Port to Port Isolation ≤25 dB
    • Front-to-Back Ratio ≤35 dB
    • Cross Polarisation ≤30 dBi
    • Power Rating 30 watts
    • Impedance 50 ohms
    • Lightning Protection DC Ground
    • Connector Type N Jack (x2)


    Physical/Environmental Specifications

    • Length x Width x Depth 26.4 x 26.4 x 1.2cm
    • Weight 2.0 lbs (preliminary)
    • Backplane Aluminum
    • Radome UV stabilised ABS plastic, grey
    • Wind Survivability 200kph
    • Wind Load 0.069m2
    • Operating Temperature -45°C to 65°C
    • Pole Mount Diameter Range 1.9cm to 4.45cm
    • Environmental IP 67 (with Enclosure)
