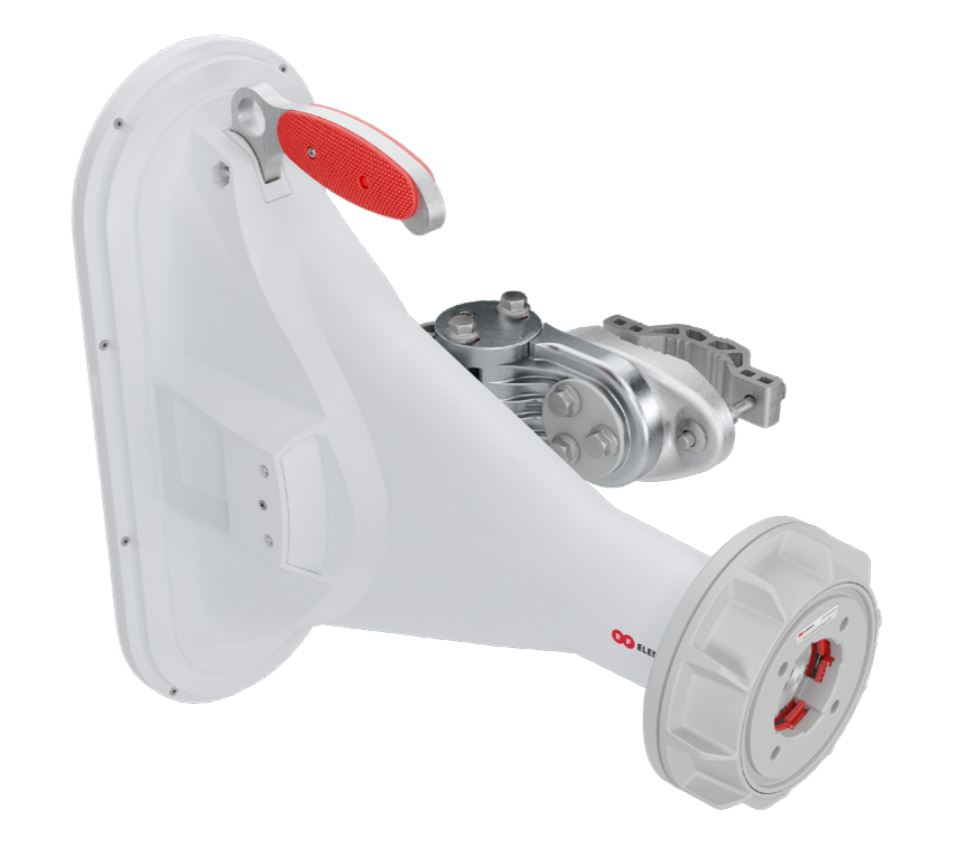

RF Elements AH90-TP 5GHz Asymmetrical Horn TwistPort 90°


Product Code: AH90-TP

Barcode: AH90-TP

656.04 incl. GST 656.04 AUD 656.04


    This combination does not exist.

    Add to Cart

    RF Elements
    RF Elements

    RF Elements solve the issue of interference in wireless networks by our proprietary technology based on noise rejecting antennas, virtually lossless connector and systems scalability. We deliver technology for fast, sustainable wireless.

    100% Original
    Fast Delivery

    Share this product:

    RF Elements HG3-TP-A90 5GHz Asymmetrical Horn TwistPort 90°

    Asymmetrical Horn TP Antennas provide asymmetrical beam shape and game-changing TwistPortTM (TP) connector. Asymmetrical Horn TP Antennas provide excellent noise rejection, network scalability and throughput increase. Providing specific beam shape, increased antenna gain and excellent noise rejection, Asymmetrical Horn TP antennas complement the successful Symmetrical Horn Antennas.

    Frequency Range 5180 - 6000 MHz

    Gain 16 dBi

    Azimuth Beam Width -6 dB H 90° / V 90°

    Elevation Beam Width -6 dB H 25° / V 25°

    Mechanical Tilt ± 25°

    Pole Mounting Diameter 22 - 80 mm
