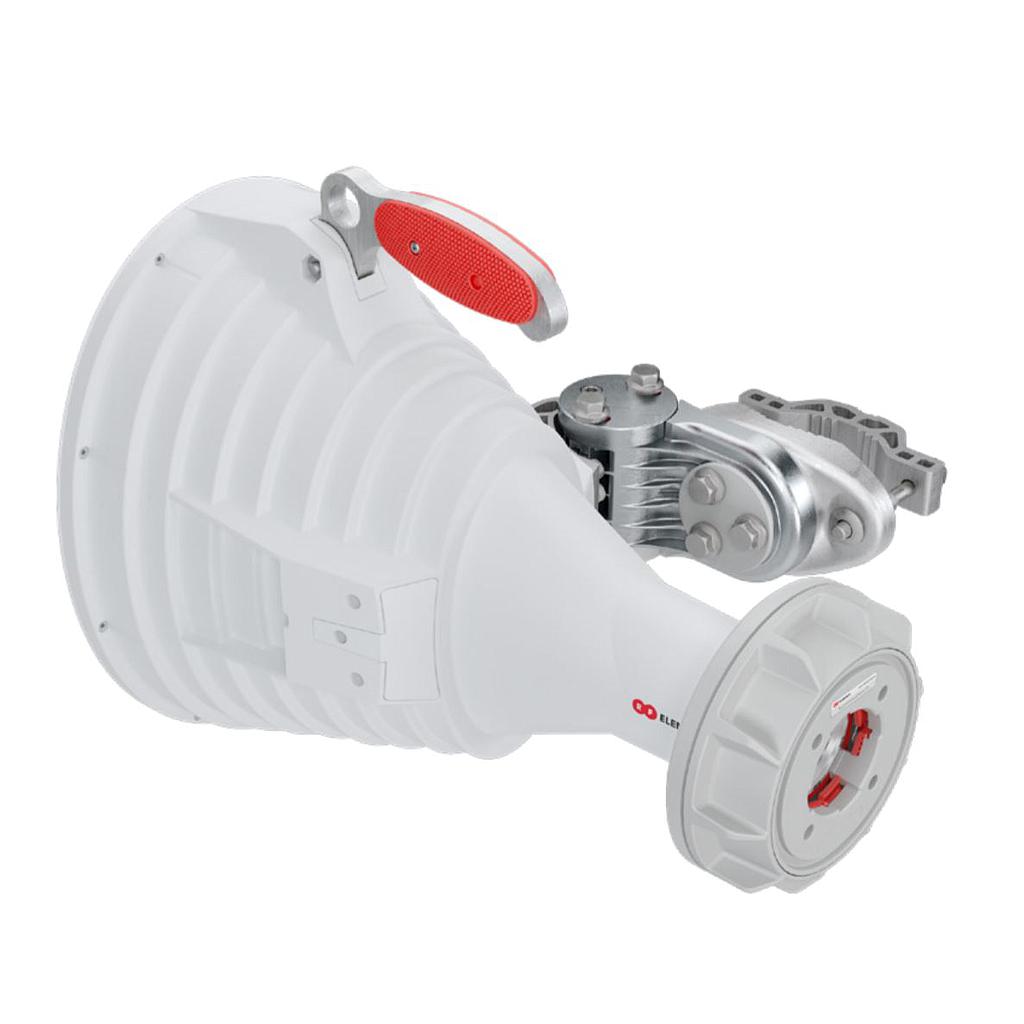

RF Elements AH2030-TP 5GHz Asymmetrical Horn TwistPort 20-30°
RF Elements AH2030-TP 5GHz 30° Asymmetrical Horn TP Antenna has high gain and zero side lobes, meaning very high beam efficiency. Its radiation pattern is wide in the azimuth and narrow in the elevation plane.
The stability of gain, radiation pattern, and resulting coverage is excellent across the whole useful bandwidth. These properties and outstanding noise rejection favor 30° Asymmetrical Horn TP Antenna to be used in high customer density and co-location sites. TwistPort™ - our revolutionary patent-pending twist-and-lock waveguide port enables connectivity to a wide range of third-party radios using TwistPort™ Adaptors.
BeamSwitch™ feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP thus can provide 20° azimuth and 30° elevation beamwidth option. The extruded aluminium ring improves the structural strength of the antenna attachment and makes the BeamSwitch™ flip easy and fast.
Asymmetrical Horn antennas were awarded WISPA Product of the Year 2019, 2020 and 2021 Awards.
TECHNICAL DATA
Antenna Connection TwistPort™ - Quick Locking Waveguide Port
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate,
HDPE, Aluminium, Stainless Steel
Enviromental IP55
Pole Mounting Diameter 40-80 mm (1.5-3.1 inch)
Recommended as close to 80 mm (3.1 inch) as possible
Temperature -35°C to +60°C (-31°F to +140°F)
Wind Survival 160 km/h (100 mi/h)
Wind Load 71/49 N - Front/Side at 160 km
Effective Projected Area 580/404 cm2 - Front/Side
Mechanical Adjustment ± 20° Elevation, ± 20° Azimuth
Weight 4.2 kg (9.2 lbs) – single unit*
6.3 kg (13.8 lbs) – single unit incl. package*
Single Unit Retail Box: 483 × 334 × 235 mm
PERFORMANCE
Frequency Range 5180 - 6000 MHz
Gain 20.5 dBi
Azimuth Beam Width -3 dB H 21° / V 21°
Elevation Beam Width -3 dB H 15° / V 15°
Azimuth Beam Width -6 dB H 30° / V 30°
Elevation Beam Width -6 dB H 20° / V 20°
Beam Efficiency** 95%
Front-to-Back Ratio 35 dB
