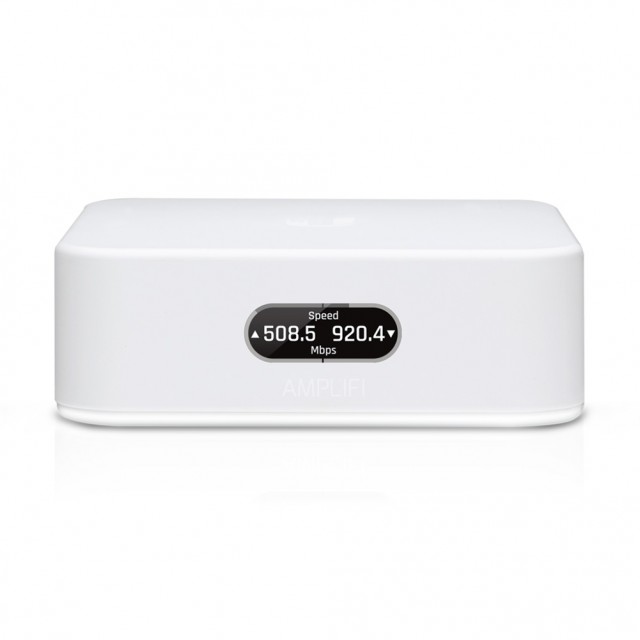

Ubiquiti AFi-INS-R AmpliFi Instant System Router
This product is no longer available.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti AFi-INS-R AmpliFi Instant System Router
The AmpliFi Instant Router features an easy-to-use touchscreen display, one Gigabit Ethernet port, a WAN port, and an Ethernet cable. The AmpliFi Router provides excellent coverage for standard-sized homes of approximately 185 square meters. Expand as needed by adding MeshPoints to your mesh Wi-Fi system.
Ubiquiti AFi-INS-R AmpliFi Instant System Router
The AmpliFi Instant Router features an easy-to-use touchscreen display, one Gigabit Ethernet port, a WAN port, and an Ethernet cable. The AmpliFi Router provides excellent coverage for standard-sized homes of approximately 185 square meters. Expand as needed by adding MeshPoints to your mesh Wi-Fi system.
AmpliFi Instant Router Specifications:
Dimensions: 99.5 x 97.8 x 33.05 mm (3.92 x 3.85 x 1.30")
Weight: 215 g (7.58 oz)
Max. TX Power: 22 dBm
MIMO: 2.4 GHz: 2x2, 5 GHz: 2x2
Speeds: 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
Networking Interface: Wi-Fi/Gigabit Ethernet (1) WAN, (1) LAN
Max. Power Consumption: 9W
ESD/EMP Protection: ± 24kV Air/Contact
Buttons: Reset
Antennas: (2) Dual-Band Antennas, Single-Polarity
Router Display: 30.73 mm (1.21") Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale
Wi-Fi Standards: 802.11ac
Power Save: Supported
Wireless Security: WPA2-PSK AES/TKIP
Operating Temperature: 14 to 131° F (-10 to 55° C)
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC, CE, IC
Supported Data Rates:
802.11ac: 13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
