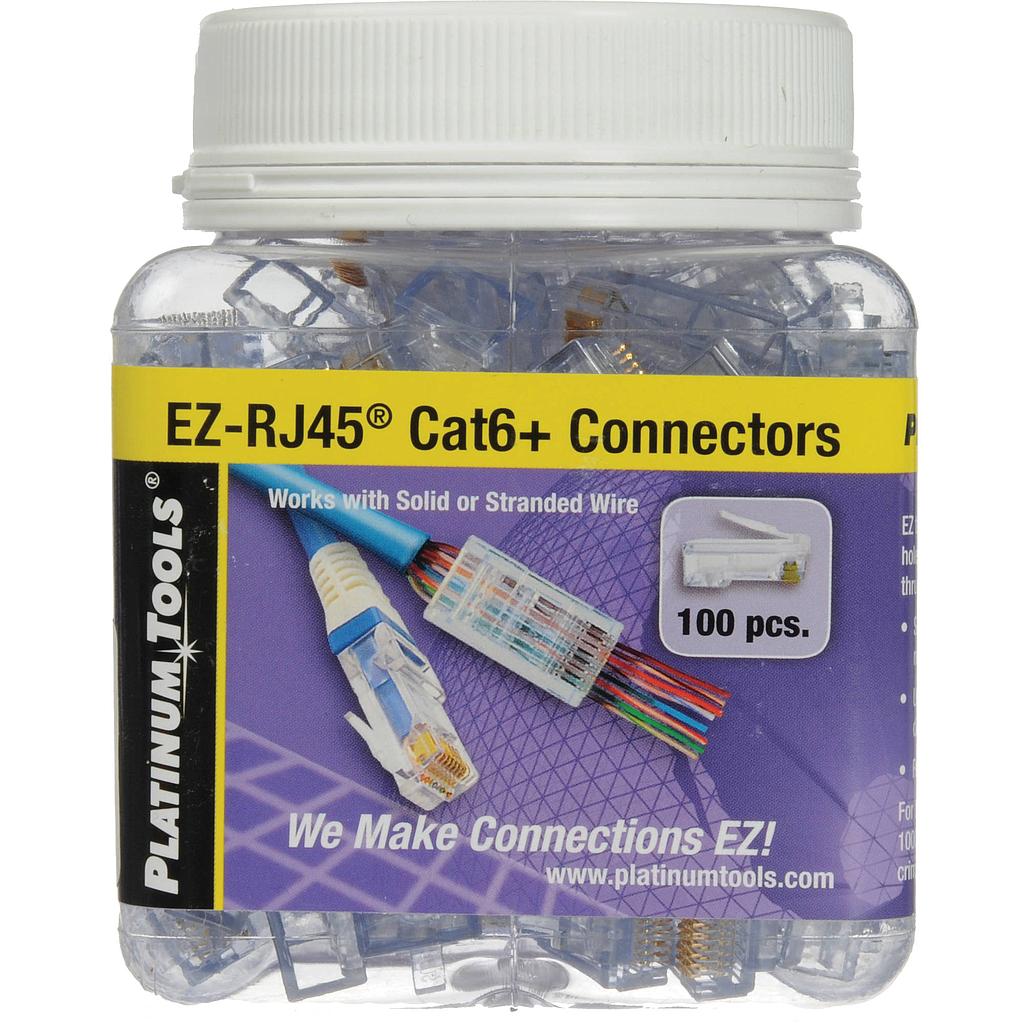

Platinum Tools 202010J EZ-RJ45® Cat6 Connector 100 pcs

Product Code: 202010J

Barcode: 849160000495

115.61 incl. GST 115.61 AUD 115.61


    This combination does not exist.

    Add to Cart

    Platinum Tools
    Platinum Tools

    Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner.

    100% Original
    Fast Delivery

    Share this product:

    Platinum Tools 202010J EZ-RJ45® Cat6 Connector 100 pcs

    Product Code: 202010J

    The Original EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized.

    Recommended for Data Applications Only

    Rated to 1 Gb

    Crimp with one of the Platinum Tools EZ-RJ45 Crimp Tools.

    *Part Numbers 100062, 100054 or 100004

    • Max Cable Outer Diameter: 0.275” (6.98mm)

    • Max Insulation Diameter (Conductors): 0.040” (1.016mm)

    • Meets ANSI/EIA/TIA/TAA specifications

    • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant

    • Solid or Stranded, 24 – 23 AWG

    • 50 micron gold plated contacts

    • Color: Clear/Transparent

    • Made in USA
