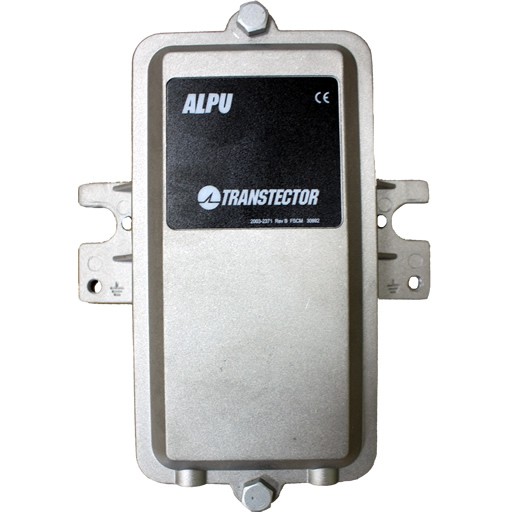

Transtector 1101-971 PtP Surge Protection Kit (2 pack of 1101-959 with Mounting Kits and Grounding Cables)
Transtector specializes in protection of highly sensitive, low voltage equipment through its patented, non-degrading silicon diode technology and custom filters. Our power quality expertise translates into a diverse product offering including AC, DC, and signal applications as well as integrated cabinets, power distribution panels and EMP hardened devices.
Share this product:
Transtector 1101-791 ALPU-PTP-M Gigabit PoE Surge Protection Kit
The Transtector ALPU-PTP-M is ideal for protecting high speed 10/1000BT communications networks. The protection circuits utilize silicon avalanche diode technology. The protection circuit board is housed in an aluminum enclosure. The enclosure is an outdoor qualified NEMA 3R type with versatile mounting flanges. The ALPU-PTP-M features RJ45 protection circuits for gigabit Ethernet data (pins 1,2 & 3,6 & 4,5 & 7,8). The unit is intended to be wall mounted with an optional bracket available to allow a wide range of pole mount configurations. A dedicated ground point on the housing must be bonded to the nearest grounding system (or Master Ground bar) for proper surge protection functionality. The system wiring is installed with RJ-45 type connectors that can install directly into the chassis without having to cut or splice or route through awkward strain relief holes. The enclosure includes a built in cable retention feature for improved cable management using screw down clamps. In the unlikely event of surge protection self sacrifice, the protection elements will fail short to disrupt communication.
ALPU-PTP-M protection kit (1101-971) is deal for 1000 Base T Gigabit Ethernet protection for Point to Point wireless solutions. The kit contains two ALPU protection units (1101-959) as well as the necessary mounting hardwire and cable assemblies to provide complete protection from lightning generated transients.
